POS

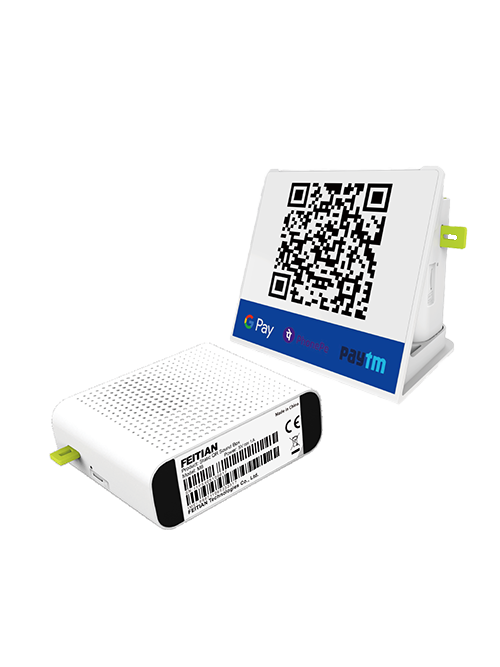

M10 & M8 Soundbox
Description:
They make managing payments easier with clear audio alerts.
4W speaker
ensures clear payment
notifications
4G support for consistent
performance anywhere.
Lightweight (223g) with
optional QR bracket for
easy access.
2000mAh battery
lasts all day.
Processor:
Cortex-R5 RTOS
Memory:
RAM: 4MB / ROM: 4MB
Speaker:
4Ω/3W
Keys / Buttons:
Power, Volume +/-, Function,
Reset
Indicator:
Red, green, and blue indicator
Card Slot:
SIM*1
Peripheral Ports:
Type-C
Battery & weight:
2000mAh | 223g
Power:
Support 5V-1A power adapter input
Physical:
132mm(L) × 65mm (W) × 73mm (H)
With QR Code Bracket: 132mm(L) × 65mm(W) × 181mm(H)
With QR Code Bracket: 132mm(L) × 65mm(W) × 181mm(H)
Environment:
Operating Temperature: -10°C ~
50°C (14°F~122°F)
Storage Temperature: -20°C ~ 60°C (-4°F~140°F)
Relative Humidity: 5%-96% (Non-Condensing)
Storage Temperature: -20°C ~ 60°C (-4°F~140°F)
Relative Humidity: 5%-96% (Non-Condensing)
Communications:
4G (LTE-FDD/LTE-TDD) + 3G (WCDMA)
+ 2G (GSM/GPRS),
WiFi 2.4GHz/5GHz, BT5.0 (BR/EDR+BLE)
Location:
GPS, Beidou, Galileo, GLONASS
Environment:
Operating Temperature: -10°C ~
50°C (14°F~122°F)
Storage Temperature: -20°C ~ 70°C (-4°F~158°F)
Relative Humidity: 5%-96% (Non-Condensing)
Certifications:
PCI, Paywave(VISA),
Paypass(Mastercard), Pure, Amex, QM, FCC
EMV L1/L2, EMV Contactless L1, D-PAS(DISCOVER), QUICS, RoHS, CE
